| 提取濃縮系統》球形濃縮器多功能酒精回收設備 |
|
| |
QN球型真空減壓濃縮器球型多功能酒精回收設備中藥材提取設備球形濃縮罐 |
 |
| |
| |
| 產品簡介Introduction： |

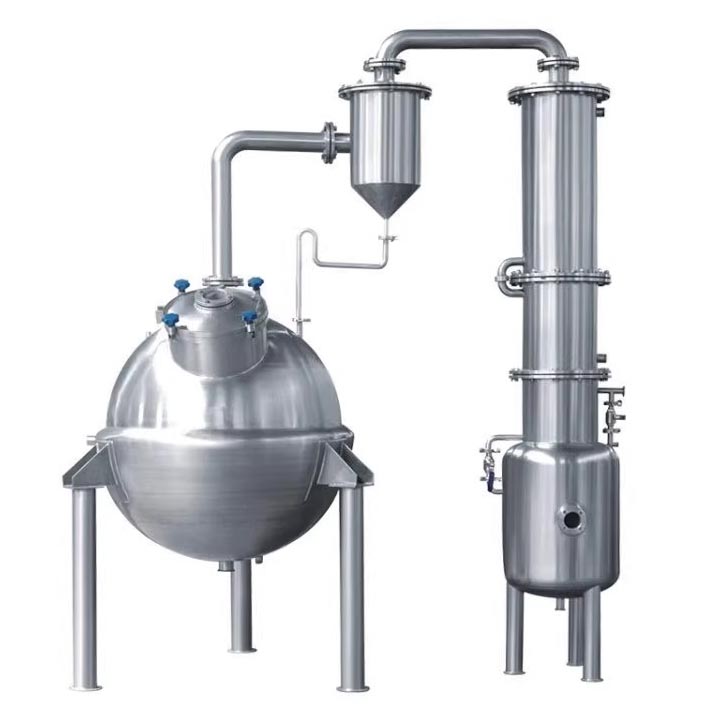

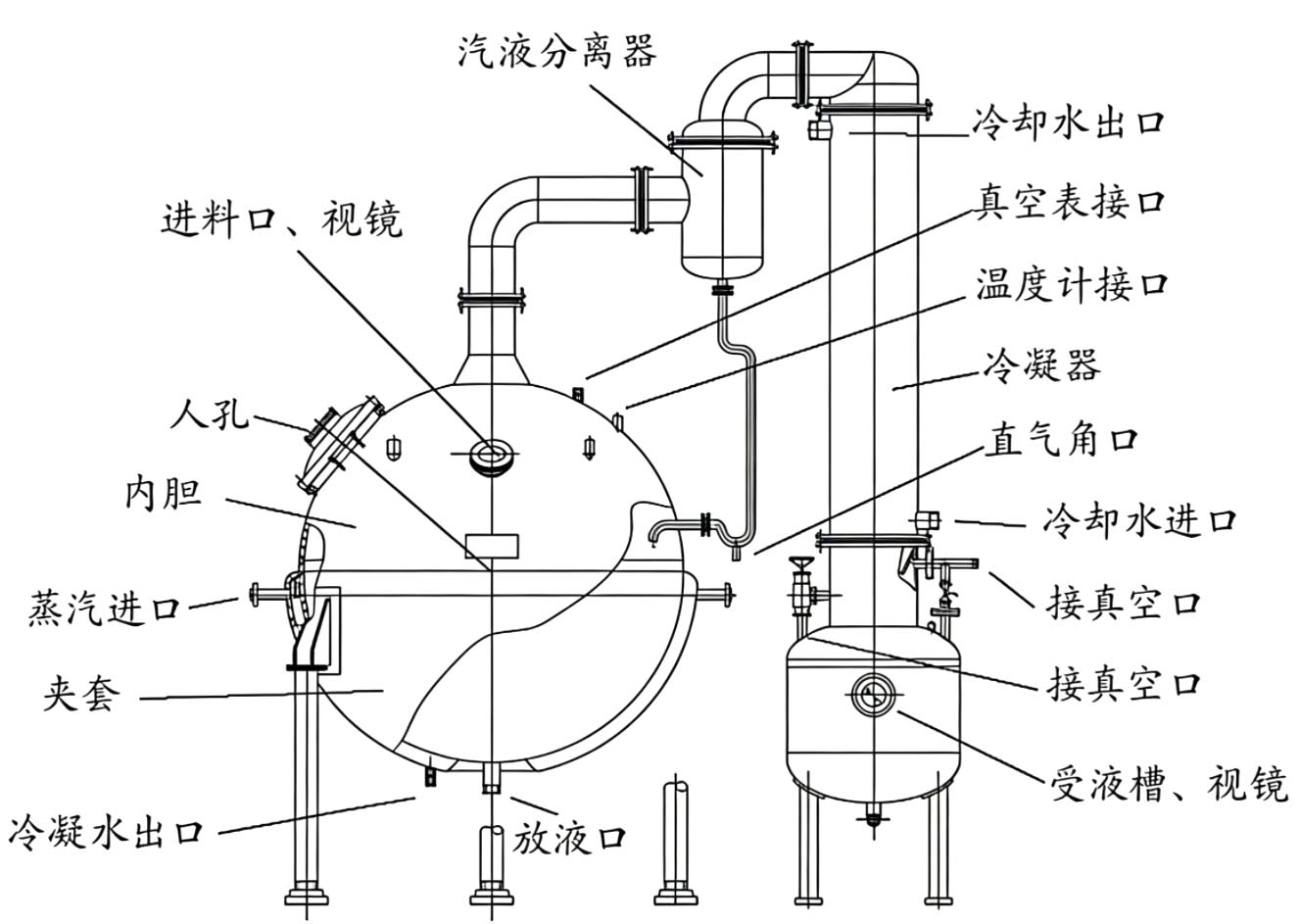

球形濃縮罐主要由濃縮罐主體、冷凝器、氣液分離器、受液桶四個部分組成，可用于制藥、食品、化工等行業對料液的濃縮、蒸溜及有機溶
媒的回收等工藝。由于采用減壓濃縮，故濃縮時間短，且不會破壞熱敏料的有效成份。本設備與物與物料接觸部分均為優質不銹鋼制造，具
有良好的耐腐蝕性能，經久耐用，符合GMP要求。

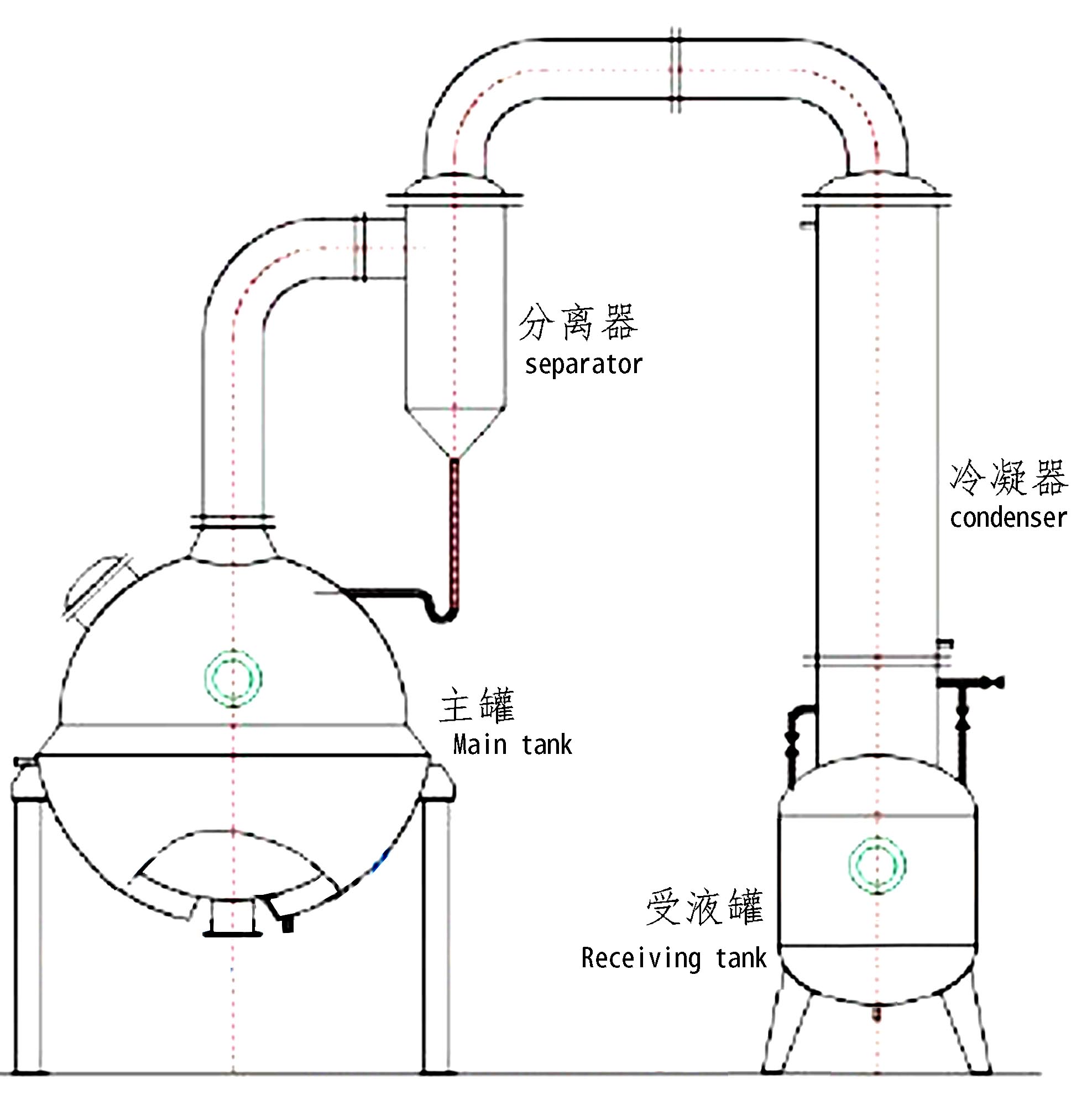

The spherical concentration tank is mainly composed of the concentration tank body, condenser, gas-liquid separator, and receiving tank. It can be used in industries such as pharmaceuticals, food, and chemicals for processes such as concentration, distillation, and recovery of organic solvents of the liquid materials. Due to the use of reduced-pressure concentration, the concentration time is short, and the effective components of heat-sensitive materials will not be damaged. The parts in contact with the material and the equipment are all made of high-quality stainless steel, which has good corrosion resistance, is durable, and complies with GMP requirements. |
| |
| 產品用途product use： |
本裝置適用于制藥、食品、輕工、化工等行業的稀酒精回收。本裝置可將30-50度的稀酒精蒸餾到90-95度， 成品酒精度要求高，可加大回
流比，但相應成品產量降低，殘液排放含醇度：≤2%，是專門回收酒精的好設備。
This device is applicable for the recovery of dilute alcohol in industries such as pharmaceuticals, food, light industry, and chemical engineering. This device can distill 30-50 degree dilute alcohol to 90-95 degree. The alcohol content of the finished product is high, so a higher reflux ratio can be adopted, but the corresponding production volume will decrease. The residual liquid discharge contains alcohol at a level of ≤2%. It is a very good equipment for recovering alcohol. |
|
| |
| |
 |
| |
| |
| |
| 主要技術參數Specifications: |
規格
Model |
QN-300 |
QN-500 |
QN-700 |
QN-1000 |
QN-1500 |
QN-2000 |
蒸發量
Evaporation rate(kg/h) |
70 |
120 |
145 |
195 |
250 |
350 |
容積
Volume(L) |
300 |
500 |
700 |
1000 |
1500 |
2000 |
球內徑
Inner diameter of the ball(mm) |
800 |
990 |
1115 |
125 |
1400 |
1600 |
蒸汽壓
Vapor pressure(Mpa) |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
夾層壓力
Interlayer pressure(Mpa) |
0.09 |
0.09 |
0.09 |
0.09 |
0.09 |
0.09 |
真空度
Vacuum degree(Mpa) |
-0.05-0.08 |
-0.05-0.08 |
-0.05-0.08 |
-0.05-0.08 |
-0.05-0.08 |
-0.05-0.08 |
加熱面積
Heating area(m2) |
1.6 |
2 |
2.3 |
3.2 |
4 |
5.2 |
冷凝面積
Condensation area(m2) |
3.9 |
5 |
5.8 |
8.2 |
11 |
16 |
耗水
Water consumption(T/H) |
5 |
5 |
8 |
8 |
10 |
12 |
蒸汽進口
Steam inlet(mm) |
32 |
32 |
32 |
40 |
40 |
40 |
水進口
Water inlet(mm) |
32 |
32 |
40 |
40 |
50 |
50 |
集液罐容積
Volume of collection tank (L) |
150 |
200 |
220 |
240 |
280 |
300 |
電熱/蒸汽
Electric heating(KW)/Steam |
24 |
27 |
27 |
36 |
蒸汽Steam |
蒸汽Steam |
設備重量
Weight |
400 |
500 |
700 |
1000 |
1600 |
1950 |
外形尺寸
Overall Size |
長Length(L) |
1900 |
2030 |
2100 |
2335 |
2500 |
2750 |
寬Width(W) |
1100 |
1200 |
1300 |
1520 |
1700 |
1800 |
高Height (H) |
2300 |
2500 |
2600 |
2765 |
2900 |
3100 |
|
|
| |
|
|
